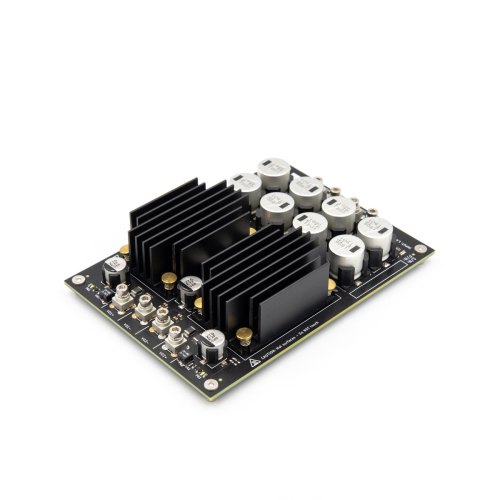

Description The DDC402MP is an Ultra Low Noise High Performance Linear DC/DC Convertter. It includes input EMI Filter, attenuating all types of interferences from other devices attached to the line. Output stage performs a ultra low noise, ripple and dropout voltage. It’s a good choice for those applications that need ultra low noise and high precision outputs like Audio, RF, Medical, Instrumentation, Quantum Computing, Optoelectronics, High Precission Data Converters and so on. Key Specifications – Ultra Low Noise Output Ripple – Military Temperature Range (-55ºC to 150ºC) – Complies MIL-STD-810H¹, MIL-STD-461² – Dual /- Outputs (Can be combined in Series or Paralel) – Ultra low dropout voltage – Slow Output Charge/Discharge – RC and LC Input and Output Filtering – Top Brands Components (Murata, Bourns, TI, Nichicon,…) – Designed and hand assembled in the beautiful Barcelona, Spain We only use original parts and from top brands on our products. Stay away from products using fake parts and help us to win the battle against counterfeit semiconductors products. Models Output Voltage 1.2V to 15V ( /- 0.5V Fine Adjust) Output Current ~4A x 2 RMS Noise (10Hz to 10kHz) ≤ 0.00000002 VRMS (0.02 μVRMS) (at 1 mVRMS Input) PP Noise (10Hz to 100kHz) ≤ 0.0000001 Vpp (0.1 μVpp) (at 1 mVRMS Input) PSRR at 1MHz 80dB Input Voltage 1.8V to 20V Input Filter Capacitors 8 x 1800 μF Ultra Low ESR Hybrid Polymer / Long Life Output Filter Capacitors 6 x 270 μF Ultra Low ESR Hybrid Polymer / Long Life Connections M3 x 4mm Screw Connectors Additional information Weight 0.250 kg Dimensions 140 x 100 x 30 mm *NOTE: Check Documentation tab for drawings, guides and more. **NOTE: For custom output voltages, please contact us. (Max. 15V each output for this model)
