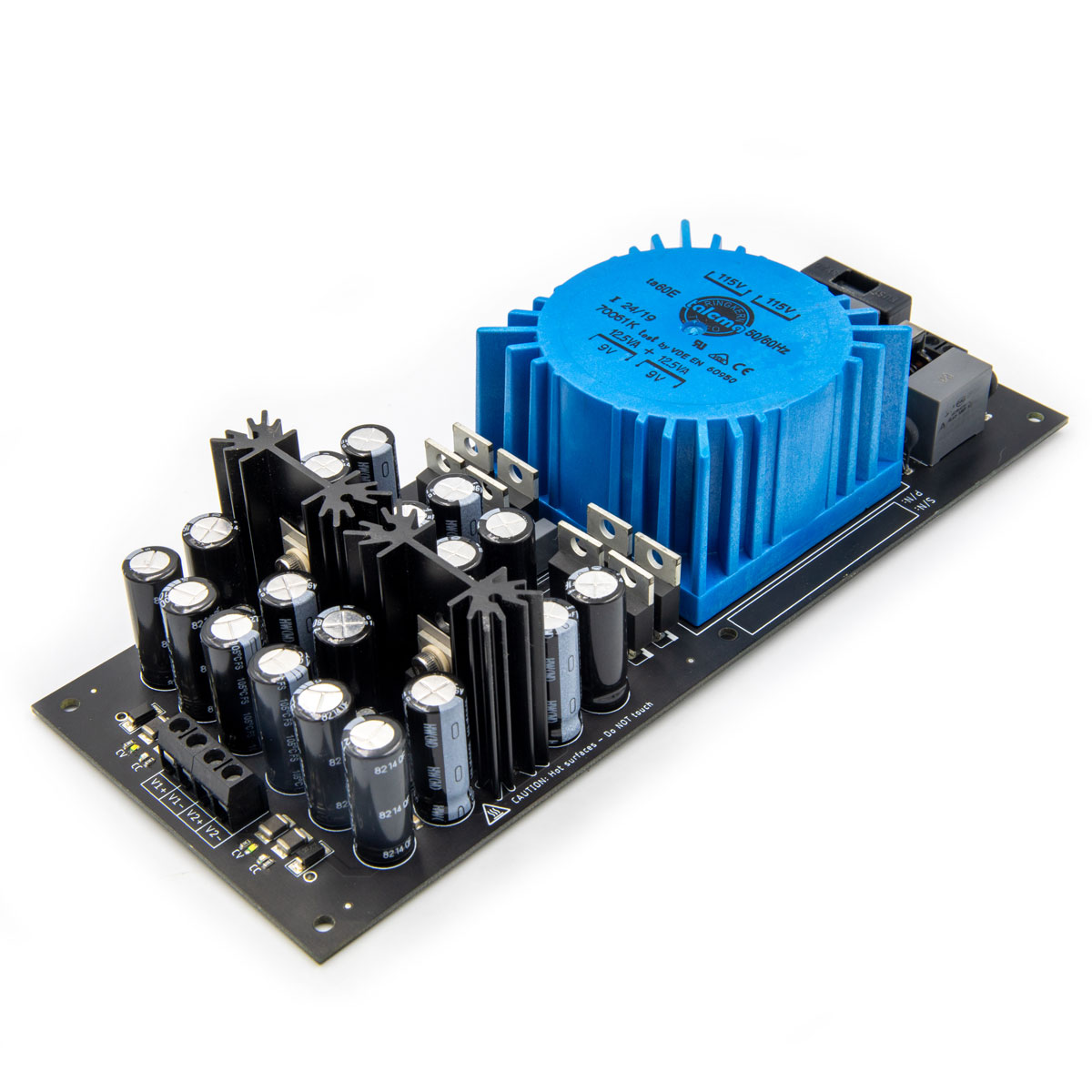

Description The ULPS1225A is an Ultra Low Noise High Performance Linear Power Supply. It includes input EMI Filter, attenuating all types of interferences from other devices attached to the line. Output stage performs a ultra low noise ripple and dropout voltage. It’s a good choice for those applications that need ultra low noise and high precision outputs like RF, Medical, Instrumentation, High Precission Data Converters and so on. ULPS1225A is also available with Aluminum case and accesories. Check it out here. For a lower Ripple Noise and Higher PSRR, check out the ULPS1225B. Key Specifications – Ultra Low Noise Output Ripple – Talema Audio Grade low-leakage Toroidal Transformer – MUR860 Ultrafast Diodes (For a warmer sound) – Dual /- Outputs (Can be combined in Series or Paralel) – Ultra low dropout voltage – Slow Output Charge/Discharge (Avoiding “pops”) – Inrush current limiting – 115/230V Selectable – RC and LC Input and Output Filtering – Top Brands Components (Murata, Bourns, TI, Nichicon,…) – Designed and hand assembled in the beautiful Barcelona, Spain We only use original parts and from top brands on our products. Stay away from products using fake parts and help us to win the battle against counterfeit semiconductors products. Models 5V Model Output Voltage 5V x 2 Output Current ~1.5A x 2 RMS Noise (10Hz to 10kHz) ≤ 0.00015 VRMS PP Noise (10Hz to 100kHz) ≤ 0.0005 Vpp PSRR at 1MHz 75dB Mains Voltage 115/230 VAC 50/60 Hz Transformer 25VA Audio grade toroidal shielded Mains Filter High performance dual stage filter Input Filter Capacitors 12 x 1800 uF Ultra Low ESR / Long Life Output Filter Capacitors 6 x 2700 uF Ultra Low ESR / Long Life Connections 16 AWG Terminal blocks 9V Model Output Voltage 9V x 2 Output Current ~1A x 2 RMS Noise (10Hz to 10kHz) ≤ 0.00018 VRMS PP Noise (10Hz to 100kHz) ≤ 0.0005 Vpp PSRR at 1MHz 75dB Mains Voltage 115/230 VAC 50/60 Hz Transformer 25VA Audio grade toroidal shielded Mains Filter High performance dual stage filter Input Filter Capacitors 12 x 1800 uF Ultra Low ESR / Long Life Output Filter Capacitors 6 x 2700 uF Ultra Low ESR / Long Life Connections 16 AWG Terminal blocks 12V Model Output Voltage 12V x 2 Output Current ~0.75A x 2 RMS Noise (10Hz to 10kHz) ≤ 0.00020 VRMS PP Noise (10Hz to 100kHz) ≤ 0.0006 Vpp PSRR at 1MHz 75dB Mains Voltage 115/230 VAC 50/60 Hz Transformer 25VA Audio grade toroidal shielded Mains Filter High performance dual stage filter Input Filter Capacitors 12 x 1800 uF Ultra Low ESR / Long Life Output Filter Capacitors 6 x 2700 uF Ultra Low ESR / Long Life Connections 16 AWG Terminal blocks 15V Model Output Voltage 15V x 2 Output Current ~0.5A x 2 RMS Noise (10Hz to 10kHz) ≤ 0.00025 VRMS PP Noise (10Hz to 100kHz) ≤ 0.0007 Vpp PSRR at 1MHz 75dB Mains Voltage 115/230 VAC 50/60 Hz Transformer 25VA Audio grade toroidal shielded Mains Filter High performance dual stage filter Input Filter Capacitors 12 x 1800 uF Ultra Low ESR / Long Life Output Filter Capacitors 6 x 2700 uF Ultra Low ESR / Long Life Connections 16 AWG Terminal blocks 18V Model Output Voltage 18V x 2 Output Current ~0.5A x 2 RMS Noise (10Hz to 10kHz) ≤ 0.00025 VRMS PP Noise (10Hz to 100kHz) ≤ 0.0007 Vpp PSRR at 1MHz 75dB Mains Voltage 115/230 VAC 50/60 Hz Transformer 25VA Audio grade toroidal shielded Mains Filter High performance dual stage filter Input Filter Capacitors 12 x 1800 uF Ultra Low ESR / Long Life Output Filter Capacitors 6 x 2700 uF Ultra Low ESR / Long Life Connections 16 AWG Terminal blocks 24V Model Output Voltage 24V x 2 Output Current ~0.5A x 2 RMS Noise (10Hz to 10kHz) ≤ 0.00025 VRMS PP Noise (10Hz to 100kHz) ≤ 0.0007 Vpp PSRR at 1MHz 75dB Mains Voltage 115/230 VAC 50/60 Hz Transformer 25VA Audio grade toroidal shielded Mains Filter High performance dual stage filter Input Filter Capacitors 12 x 1800 uF Ultra Low ESR / Long Life Output Filter Capacitors 6 x 2700 uF Ultra Low ESR / Long Life Connections 16 AWG Terminal blocks Additional information Weight 0.625 kg Dimensions 200 x 80 x 40 mm *NOTE: Check Documentation tab for drawings, guides and more.
