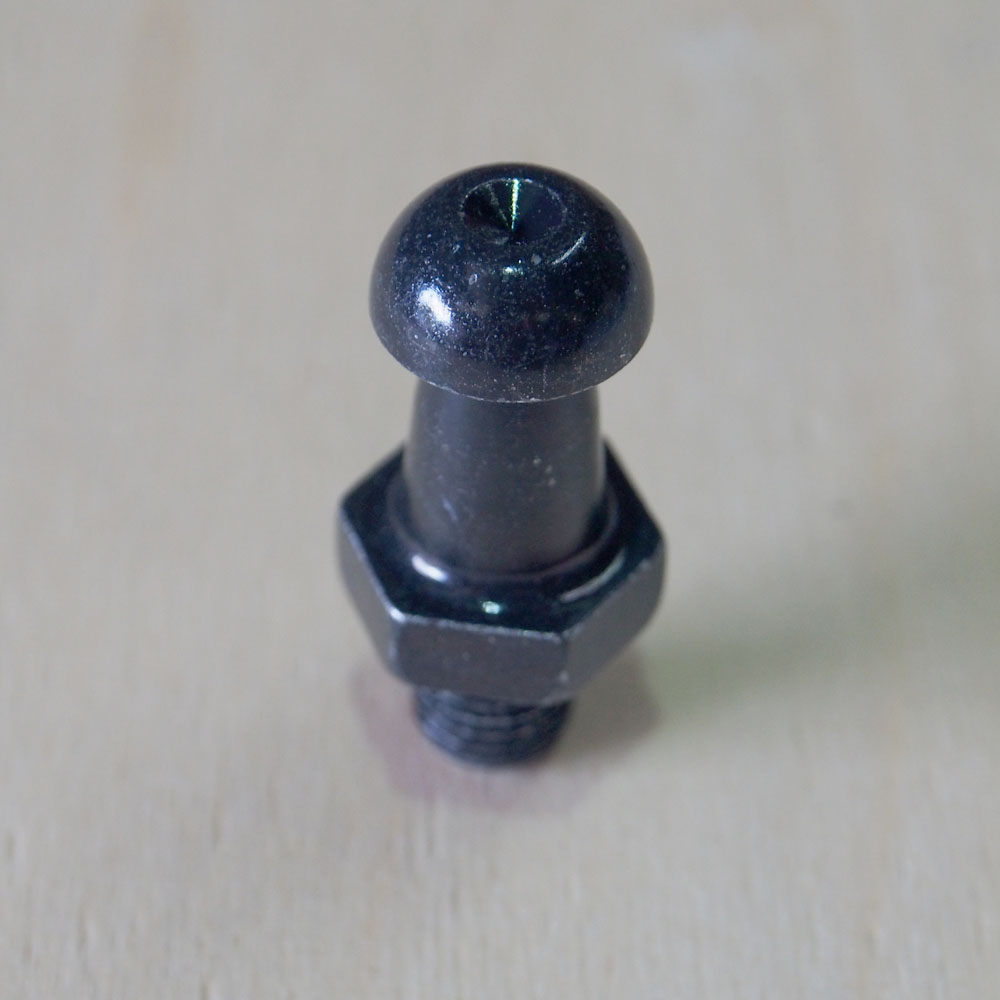

Description W5x / T50 / Other gearbox – Clutch fork pivot ball / bolt Located inside the bellhousing cavity and wound into the rear inner face this part provides the pivot / attachment point for the clutch fork. Part compatibility – T40 / T50 – W55 to W59 – Multiple other Toyota gearboxes – DOES NOT SUIT W50 Additional information – Uses a M10 x 1.25mm pitch thread – Length – Base the flange (The face that winds up against the Bellhousing) to the top of ball: 29mm – Length – Total overall length including threaded section: 41mm
